What's Actually Inside a TV Bed Frame? We Took Apart the Echo Ottoman Bed to Find Out

Most TV bed Frame listings tell you what it does. Almost none tell you how it works, what's actually moving when that TV disappears into the footend, what the weight rating really limits, or what happens the day the mechanism decides not to play along.

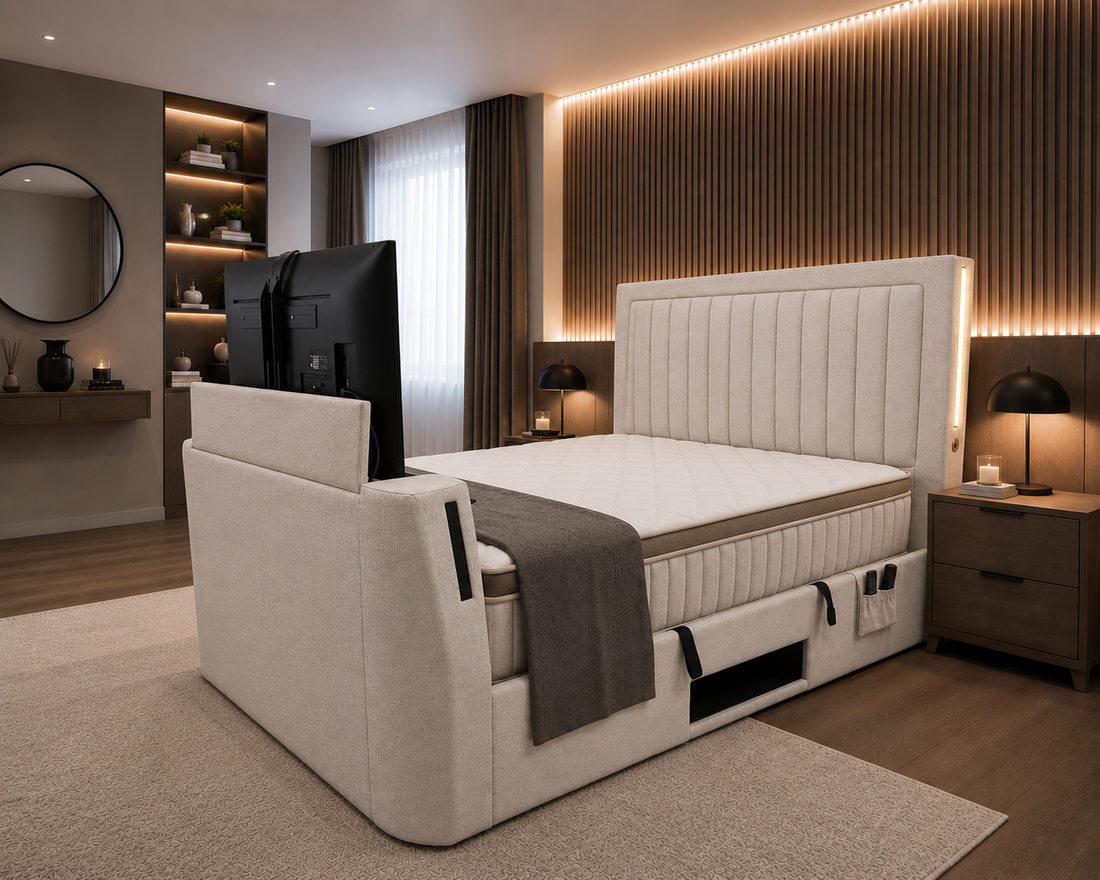

We wanted to change that. So instead of another spec sheet, we opened up our new flagship model, the Echo Dolby Atmos & DTS:X 3D, and looked at the engineering underneath the marketing.

The lift: what's actually moving

Strip away the upholstery, and there are two entirely separate mechanical systems doing two different jobs in this bed,  which surprises most people who assume it's "one mechanism."

The TV lift is motorised, not gas-strut. An electric motor drives the TV platform up out of the footend cavity and back down again, controlled from the supplied remote or a manual override switch. That's a meaningful design choice: motorised lifts give you smooth, silent, repeatable positioning and, critically, an auto-power-off function, so the bed isn't relying on a spring or a human being to control how a TV weighing several kilos moves. The trade-off is that a motorised lift is a more complex system than a simple gas-strut: more parts that can wear, but far more predictable behaviour while they're working.

The ottoman storage, by contrast, is gas-lift. Lifting the mattress platform to access underbed storage uses gas struts,  the same principle as an ottoman storage bed with no TV at all. It's a separate, simpler, largely maintenance-free system, which is worth knowing because if something ever goes wrong with "the mechanism," the first question is which mechanism: TV lift or storage lift- because they fail independently and for different reasons.

What "up to 43 inches" actually means

The Echo's spec sheet caps supported TV size at 43 inches. On a product this premium, that number raises an obvious question: why so modest, when wall-mounted setups routinely run to 65 inches or more?

The honest answer is that it isn't really about the motor's lifting power;  it's about the cavity. The TV has to physically retract into a footend void that also has to leave room for the frame structure, the cabling, and,  in this bed's case, the seven-speaker soundbar array sitting in front of it. Build the cavity bigger to fit a 55" screen, and you either raise the whole footend height (changing the proportions of the bed) or you sacrifice the depth needed for the sound system's own hardware. A 43" cap here isn't a weakness so much as a consequence of everything else this specific bed is trying to fit into the same space.

The part nobody puts in the copy - what happens when it jams

Every motorised mechanism has a failure mode, and TV beds are no exception. The common causes, in order of likelihood, are usually:

• Misalignment — something (a cable, a stray sock, an over-stuffed duvet) gets caught in the lift channel and throws the platform off its running track.
• Remote/control board faults — the motor is fine, but the signal telling it what to do isn't, which looks identical to a "mechanical" fault from the outside.
• Genuine motor wear — the least common cause, and the one the 5-year warranty exists for.

What we can say with confidence: because the lift is motorised rather than a purely mechanical spring system, most faults are diagnosable and often fixable without replacing the whole unit; a stuck lift is far more likely to be a £20 sensor or a pinched cable than a dead motor. That's the practical case for buying from a specialist who can actually talk you through a fault over the phone, rather than a faceless marketplace listing.

The sound system, mechanically speaking

This is where the Echo earns the "3D surround sound" name, and it's worth explaining what's actually built into the frame rather than just quoting the badge:

• 15 speakers integrated directly into the bed structure, not bolted on as an afterthought
• A seven-speaker digital soundbar built into the front of the footend
• Angled left/right speakers built into the sides of the footend, aimed to project sound across the room rather than straight up at the mattress
• Four dedicated bass speakers for low end, rather than relying on the soundbar alone
• 180W total output, configured as true 5.1 surround rather than simulated/virtual surround

A Dolby Atmos and DTS:X certification means the bed auto-detects the source format and switches accordingly; Atmos content plays back as Atmos, DTS:X content as DTS:X, rather than downmixing everything to one format. Combined with HDMI 2.1 eARC, that's a genuine home-cinema-spec audio path, not a soundbar-in-a-headboard gimmick.

Storage: the detail that actually matters day to day

Underneath the audio hardware, the ottoman storage has one small design detail worth calling out: a floating storage floor that physically separates stored items from the bed's cabling and electronics below. It's a small thing, but it's the difference between "storage space" and "storage space you can actually trust with things you don't want tangled in a wiring loom."

So who is this bed actually for?

If what you're after is the closest thing to a home cinema built into a TV bed frame a proper 5.1 object-based audio, not a soundbar afterthought- the Echo is doing something genuinely different from a bed that hides a television. Now you know what's actually making that happen underneath it.
